augmenters.size¶
Resize¶
Augmenter that resizes images to specified heights and widths.
API link: Resize
Example. Resize each image to height=32 and width=64:
import imgaug.augmenters as iaa
aug = iaa.Resize({"height": 32, "width": 64})
Example. Resize each image to height=32 and keep the aspect ratio for width the same:
aug = iaa.Resize({"height": 32, "width": "keep-aspect-ratio"})

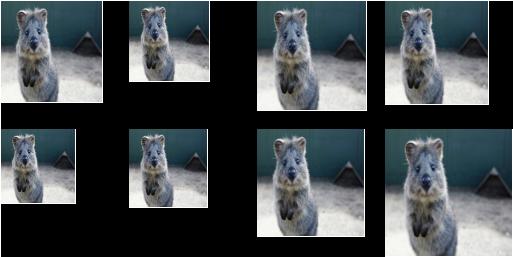

Example. Resize each image to something between 50 and 100% of its original size:
aug = iaa.Resize((0.5, 1.0))
Example. Resize each image’s height to 50-75% of its original size and width to either 16px or 32px or 64px:
aug = iaa.Resize({"height": (0.5, 0.75), "width": [16, 32, 64]})
CropAndPad¶
Crop/pad images by pixel amounts or fractions of image sizes.
Cropping removes pixels at the sides (i.e. extracts a subimage from a given full image). Padding adds pixels to the sides (e.g. black pixels).
Note
This augmenter automatically resizes images back to their original size
after it has augmented them. To deactivate this, add the
parameter keep_size=False
.
API link: CropAndPad

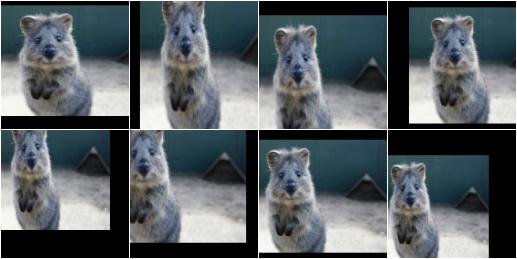

Example. Crop or pad each side by up to 10 percent relative to its original size (negative values result in cropping, positive in padding):
import imgaug.augmenters as iaa
aug = iaa.CropAndPad(percent=(-0.25, 0.25))
Example. Pad each side by 0 to 20 percent. This adds new pixels to the sides. These pixels will either be filled with a constant value (mode=constant) or filled with the value on the closest edge (mode=edge). If a constant value is used, it will be a random value between 0 and 128 (sampled per image).
aug = iaa.CropAndPad(
percent=(0, 0.2),
pad_mode=["constant", "edge"],
pad_cval=(0, 128)
)

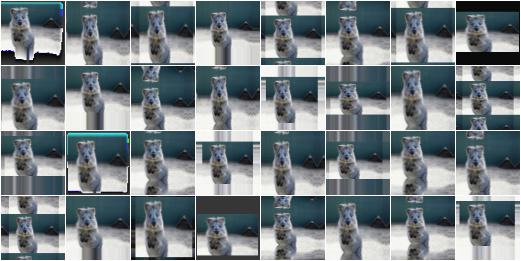

Example. Pad the top side of each image by 0 to 30 pixels, the right side by 0-10px, bottom side by 0-30px and left side by 0-10px. Use any of the available modes to fill new pixels and if the mode is constant then use a constant value between 0 and 128.
aug = iaa.CropAndPad(
px=((0, 30), (0, 10), (0, 30), (0, 10)),
pad_mode=ia.ALL,
pad_cval=(0, 128)
)

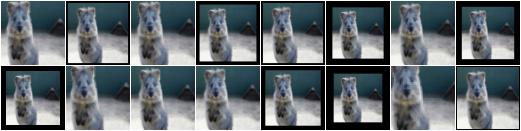

Example. Crop/pad each side by up to 10px. The value will be sampled once per image and used for all sides (i.e. all sides gain/lose the same number of rows/colums).
aug = iaa.CropAndPad(
px=(-10, 10),
sample_independently=False
)
Pad¶
Pad images, i.e. adds columns/rows of pixels to them.
This is a shortcut for CropAndPad
. It only accepts positive
pixel/percent values.
API link: Pad
Crop¶
Crop images, i.e. remove columns/rows of pixels at the sides of images.
This is a shortcut for CropAndPad
. It only accepts positive
pixel/percent values and transfers them as negative values to CropAndPad
.
API link: Crop
PadToFixedSize¶
Pad images to minimum width/height.
If images are already at the minimum width/height or are larger, they will not be padded. Note that this also means that images will not be cropped if they exceed the required width/height.
The augmenter randomly decides per image how to distribute the required
padding amounts over the image axis. E.g. if 2px have to be padded on the
left or right to reach the required width, the augmenter will sometimes
add 2px to the left and 0px to the right, sometimes add 2px to the right
and 0px to the left and sometimes add 1px to both sides. Set position
to center
to prevent that.
API link: PadToFixedSize

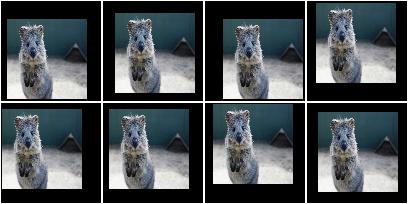

Example.
For image sides smaller than 100
pixels, pad to 100
pixels. Do
nothing for the other edges. The padding is randomly (uniformly)
distributed over the sides, so that e.g. sometimes most of the required
padding is applied to the left, sometimes to the right (analogous
top/bottom).
The input image here has a size of 80x80
.
import imgaug.augmenters as iaa
aug = iaa.PadToFixedSize(width=100, height=100)
Example.
For image sides smaller than 100
pixels, pad to 100
pixels. Do
nothing for the other image sides. The padding is always equally
distributed over the left/right and top/bottom sides.
The input image here has a size of 80x80
.
aug = iaa.PadToFixedSize(width=100, height=100, position="center")
Example.
For image sides smaller than 100
pixels, pad to 100
pixels and
use any possible padding mode for that. Do nothing for the other image
sides. The padding is always equally distributed over the left/right and
top/bottom sides.
The input image here has a size of 80x80
.
aug = iaa.PadToFixedSize(width=100, height=100, pad_mode=ia.ALL)

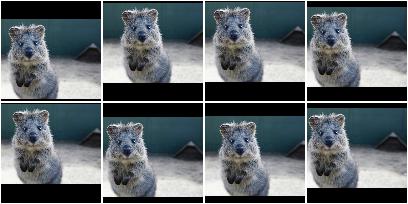

Example.
Pad images smaller than 100x100
until they reach 100x100
.
Analogously, crop images larger than 100x100
until they reach
100x100
. The output images therefore have a fixed size of 100x100
.
The input image here has a size of 80x120
, so that the top/bottom sides
have to be cropped and the left/right sides have to be padded. Note that
the original image was resized to 80x120
, leading to a bit of an
distorted appearance.
aug = iaa.Sequential([
iaa.PadToFixedSize(width=100, height=100),
iaa.CropToFixedSize(width=100, height=100)
])
CropToFixedSize¶
Crop images down to a fixed maximum width/height.
If images are already at the maximum width/height or are smaller, they will not be cropped. Note that this also means that images will not be padded if they are below the required width/height.
The augmenter randomly decides per image how to distribute the required
cropping amounts over the image axis. E.g. if 2px have to be cropped on
the left or right to reach the required width, the augmenter will
sometimes remove 2px from the left and 0px from the right, sometimes
remove 2px from the right and 0px from the left and sometimes remove 1px
from both sides. Set position to center
to prevent that.
API link: CropToFixedSize
Example.
For image sides larger than 100
pixels, crop to 100
pixels. Do
nothing for the other sides. The cropping amounts are randomly (and
uniformly) distributed over the sides of the image.
The input image here has a size of 120x120
.
import imgaug.augmenters as iaa
aug = iaa.CropToFixedSize(width=100, height=100)
Example.
For sides larger than 100
pixels, crop to 100
pixels. Do nothing
for the other sides. The cropping amounts are always equally distributed
over the left/right sides of the image (and analogously for top/bottom).
The input image here has a size of 120x120
.
aug = iaa.CropToFixedSize(width=100, height=100, position="center")
Example.
Pad images smaller than 100x100
until they reach 100x100
.
Analogously, crop images larger than 100x100
until they reach
100x100
. The output images therefore have a fixed size of 100x100
.
The input image here has a size of 80x120
, so that the top/bottom sides
have to be cropped and the left/right sides have to be padded. Note that
the original image was resized to 80x120
, leading to a bit of an
distorted appearance.
aug = iaa.Sequential([
iaa.PadToFixedSize(width=100, height=100),
iaa.CropToFixedSize(width=100, height=100)
])
KeepSizeByResize¶
Resize images back to their input sizes after applying child augmenters.
Combining this with e.g. a cropping augmenter as the child will lead to
images being resized back to the input size after the crop operation was
applied. Some augmenters have a keep_size
argument that achieves the
same goal (if set to True
), though this augmenter offers control over
the interpolation mode and which augmentables to resize (images, heatmaps,
segmentation maps).
API link: KeepSizeByResize
Example.
Apply random cropping to input images, then resize them back to their
original input sizes. The resizing is done using this augmenter instead
of the corresponding internal resizing operation in Crop
.
import imgaug.augmenters as iaa
aug = iaa.KeepSizeByResize(
iaa.Crop((20, 40), keep_size=False)
)

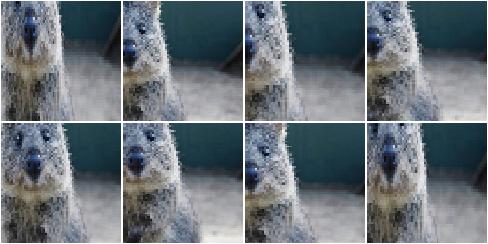

Example. Same as in the previous example, but images are now always resized using nearest neighbour interpolation.
aug = iaa.KeepSizeByResize(
iaa.Crop((20, 40), keep_size=False),
interpolation="nearest"
)

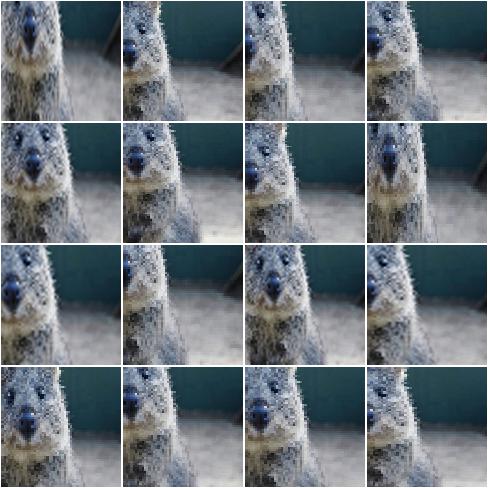

Example. Similar to the previous example, but images are now sometimes resized using linear interpolation and sometimes using nearest neighbour interpolation. Heatmaps are resized using the same interpolation as was used for the corresponding image. Segmentation maps are not resized and will therefore remain at their size after cropping.
aug = iaa.KeepSizeByResize(
iaa.Crop((20, 40), keep_size=False),
interpolation=["nearest", "cubic"],
interpolation_heatmaps=iaa.KeepSizeByResize.SAME_AS_IMAGES,
interpolation_segmaps=iaa.KeepSizeByResize.NO_RESIZE
)
